Low Force Friction Welding

Redefining Efficiency in Solid-State Joining

Contract Welding Services

Leverage our contract welding team’s expertise in part and weld development to enhance your production with Low Force.

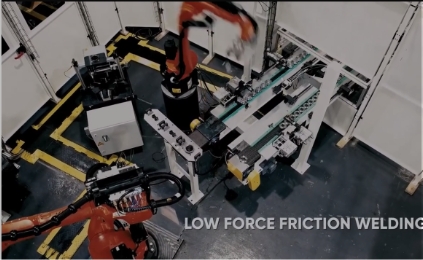

Low Force Friction Welding Machines

MTI builds Low Force Friction Welding Machines for various applications.

low force friction welding machine

Precision Joining with Less Flash Formation

Using our friction welding and solid-state joining knowledge, MTI has developed, designed, and manufactured Low Force friction welding machines that are operating in industry today. But what makes Low Force different from traditional friction welding? Unlike traditional methods, Low Force utilizes an external energy source to heat the interface of the joining parts, significantly reducing the forces needed for a solid-state weld. This approach applies to both Linear & Rotary processes, offering substantial benefits.

Low Force vs Traditional Friction Welding

Why Low Force Friction Welding

Low Force Friction Welding Handles What Traditional Friction Welding Can’t.

With Low Force Friction Welding, heat and relative motion can be controlled separately which opens the door to new applications including thin-walled parts, hardenable steels, parts that have non-rotational symmetry and other unique geometries. Here are just a few of the benefits Low Force offers.

Solid-State Joining Process

Low Force Friction Welding is a solid-state joining process. Because joining occurs below the melting temperature of the two parts being joined, the weld properties are superior to welds created with fusion processes.

Solid-State Joining Process

Low Force Friction Welding is a solid-state joining process. Because joining occurs below the melting temperature of the two parts being joined, the weld properties are superior to welds created with fusion processes.

Smooth Flash & Low Upset

As with traditional friction welding, the flash is formed as a smooth bulge instead of a pair of curls. In many cases, this process can achieve welds with little to no loss of length (upset). The shape of the flash combined with the minimal upset creates significant advantages for legacy friction welding applications such as hydraulic cylinder rods and cylinder bodies, drill pipes, and bladed disks. Easier and faster post-weld flash removal, or the elimination of post-weld flash removal altogether, can significantly reduce the cost and increase the throughput of these applications.

Biased Heat for Bi-Metallics

The Low Force friction welding process can independently heat one side of the weld interface relative to the other, which is particularly beneficial when joining bi-metallic components. Biased heating can compensate for the differing yield strengths of materials at elevated temperatures. This provides a more symmetrical consumption of material from the weld interface, even when welding materials with different mechanical properties.

Cooling Rate Control for Hardenable Steels

The Low Force process disconnects the relationship between relative motion and heat generation. This unique advantage over traditional friction welding allows MTI to control the cooling rate of the Heat Affected Zone (HAZ), which is particularly useful when joining some materials such as high carbon steels that benefit from a tailored cooling rate to promote better post weld mechanical properties.

Post-Weld Heat Treatment in Machine

For materials requiring tempering to improve hardness, post-weld heat treatment can be accomplished in the Low Force friction welder without additional machines or steps. In a traditional footprint, we can accomplish multiple processes.

Streamline Manufacturing Processes and Workflows

Low Force is a new process that enables more efficient production methods, making it crucial to evaluate your entire manufacturing process. Questions about part preparation, desired weld characteristics, and post-weld requirements become pivotal. For instance, does your current process involve the removal of flash? If Low Force eliminates this need, you can streamline production by achieving finished parts directly from the welding stage, thereby eliminating additional steps and machinery and optimizing floor space utilization. Ultimately, Low Force has the potential to revolutionize product design and manufacturing workflows, enhancing efficiency and reducing overall production costs.

Part Examples

Low Force friction welding can join a wide range of parts and geometries

Application

Castellated Tube

Application

Anode Hanger

Application

Bars joined with Linear Low Force

Application

Low Force Tube Development

Application

Linear Low Force Development

Application

Aluminum Shock Absorber

Contract Welding Services

With several R&D Low Force machines currently operational on our shop floor, we offer comprehensive contract welding services, including part and weld development, to meet your specific needs.

Contract Welding Services

With several R&D Low Force machines currently operational on our shop floor, we offer comprehensive contract welding services, including part and weld development, to meet your specific needs.

Weld Development 2.0

In this new package, MTI tests the feasibility of your application with traditional friction welding as usual, but we also perform Low Force friction welding test welds so you can compare the benefits of the new technology directly with the traditional friction welding processes.

Check Your Material Combination & Geometry

Can Your Application Be Friction Welded?
