Sample Parts

Solutions that make it easy to select the right friction welding technology

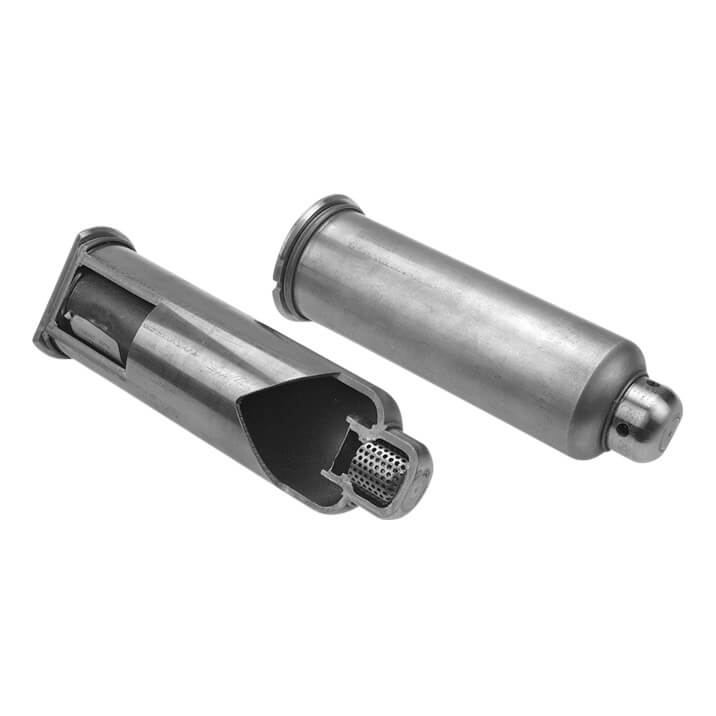

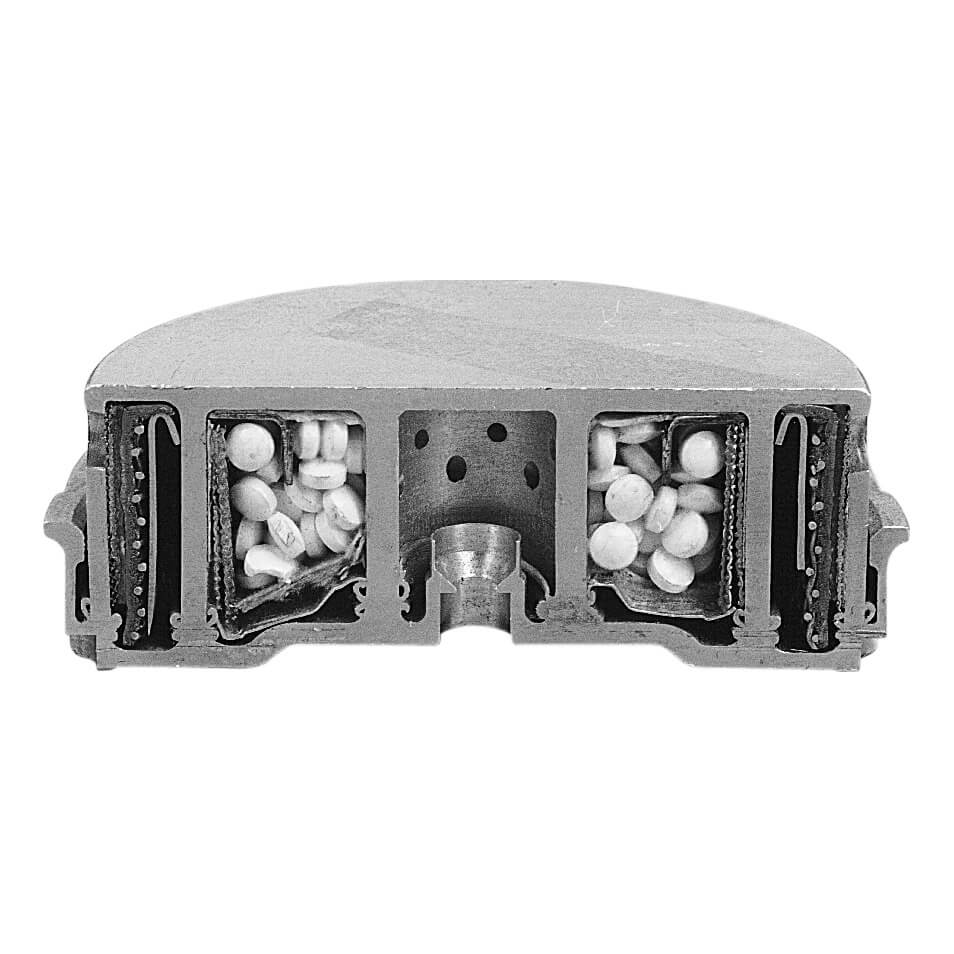

Driver side airbag inflator - cross-section

Application	Driver side airbag inflator - cross-section
Materials	Aluminum Alloys
Technology	Rotationsreibschweissen
Geometry	Rohr mit Rohr

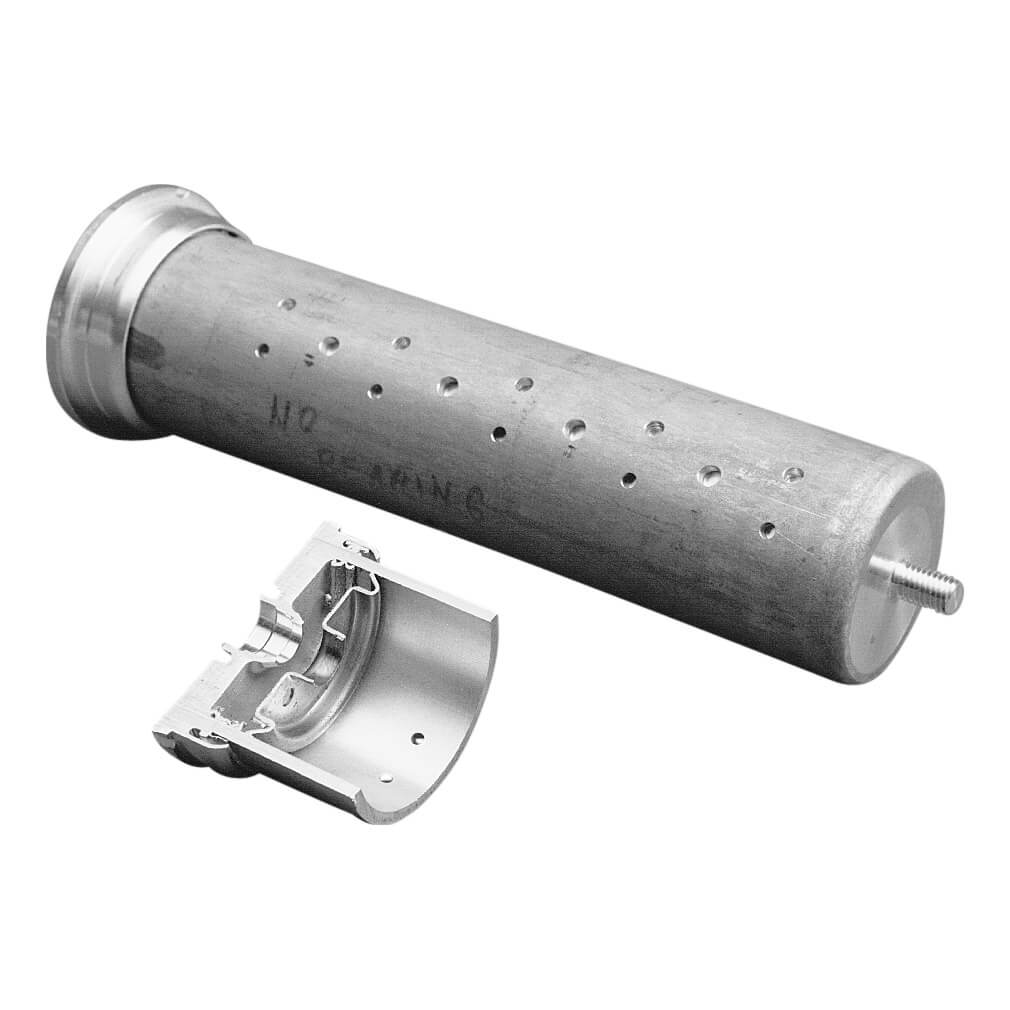

Hybrid passenger side airbag inflator

Application	Hybrid passenger side airbag inflator
Materials	Aluminum
Technology	Rotationsreibschweissen
Geometry	Rohr mit Rohr

Figure 2 of 2 Passenger side airbag inflator and cross-section

Application	Figure 2 of 2 Passenger side airbag inflator and cross-section
Materials	Aluminum Alloys
Technology	Rotationsreibschweissen
Geometry	Rohr mit Rohr

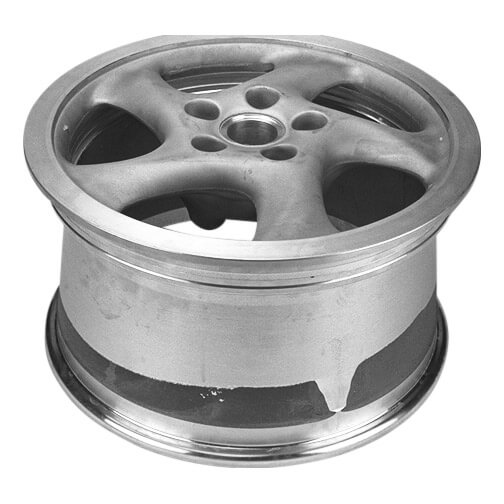

Figure 1 of 2 Wheel rim

Application	Figure 1 of 2 Wheel rim
Materials	Aluminum Alloys
Technology	Rotationsreibschweissen
Geometry	Rohr mit Rohr

Figure 2 of 2 Welded stabilizer bar cross-section

Application	Figure 2 of 2 Welded stabilizer bar cross-section
Materials
Technology	Rotationsreibschweissen
Geometry	Rohr mit Stab

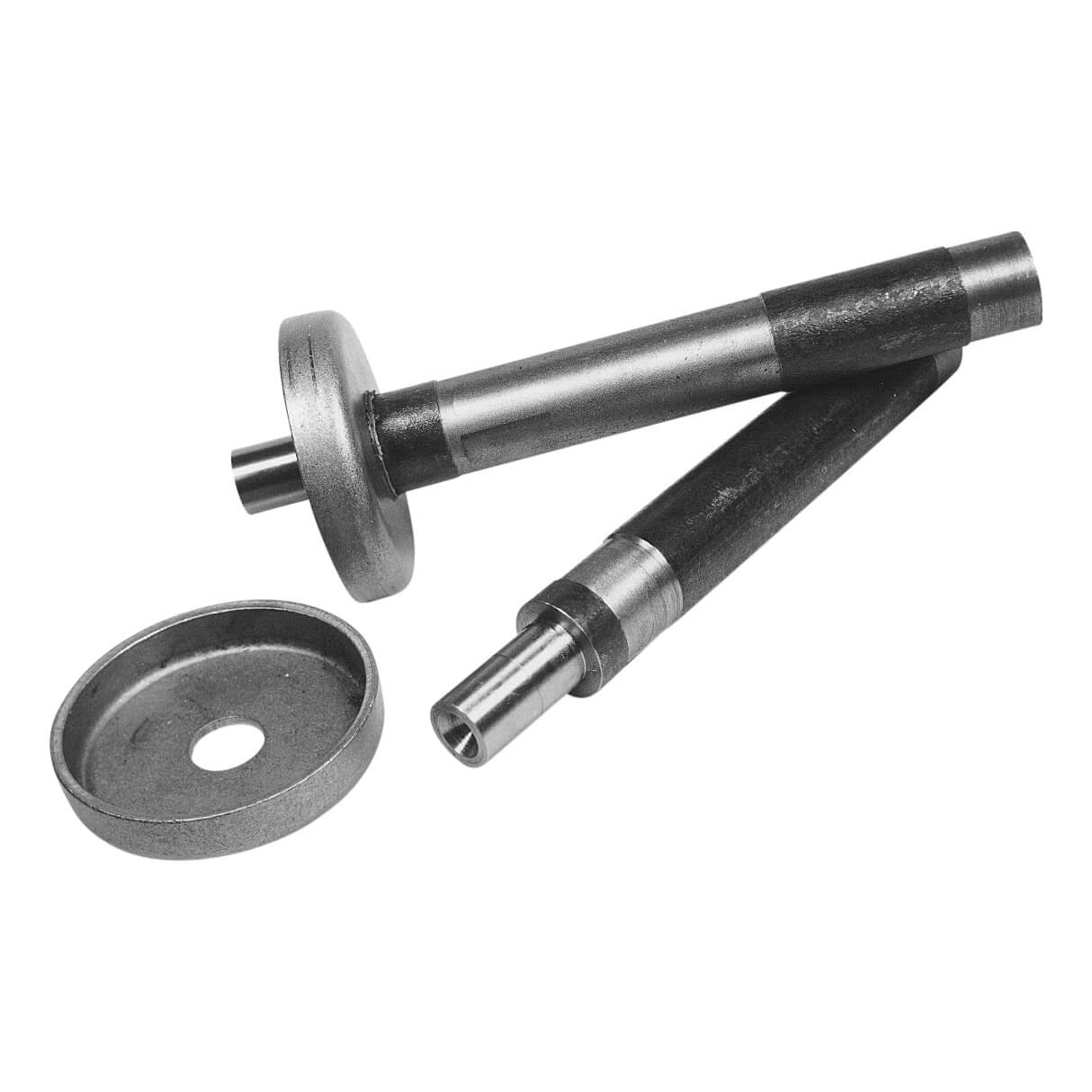

Input shaft for automotive transmission. Stamped hub to machined barstock.

Application	Input shaft for automotive transmission. Stamped hub to machined barstock.
Materials
Technology	Rotationsreibschweissen
Geometry	Stab mit Platte

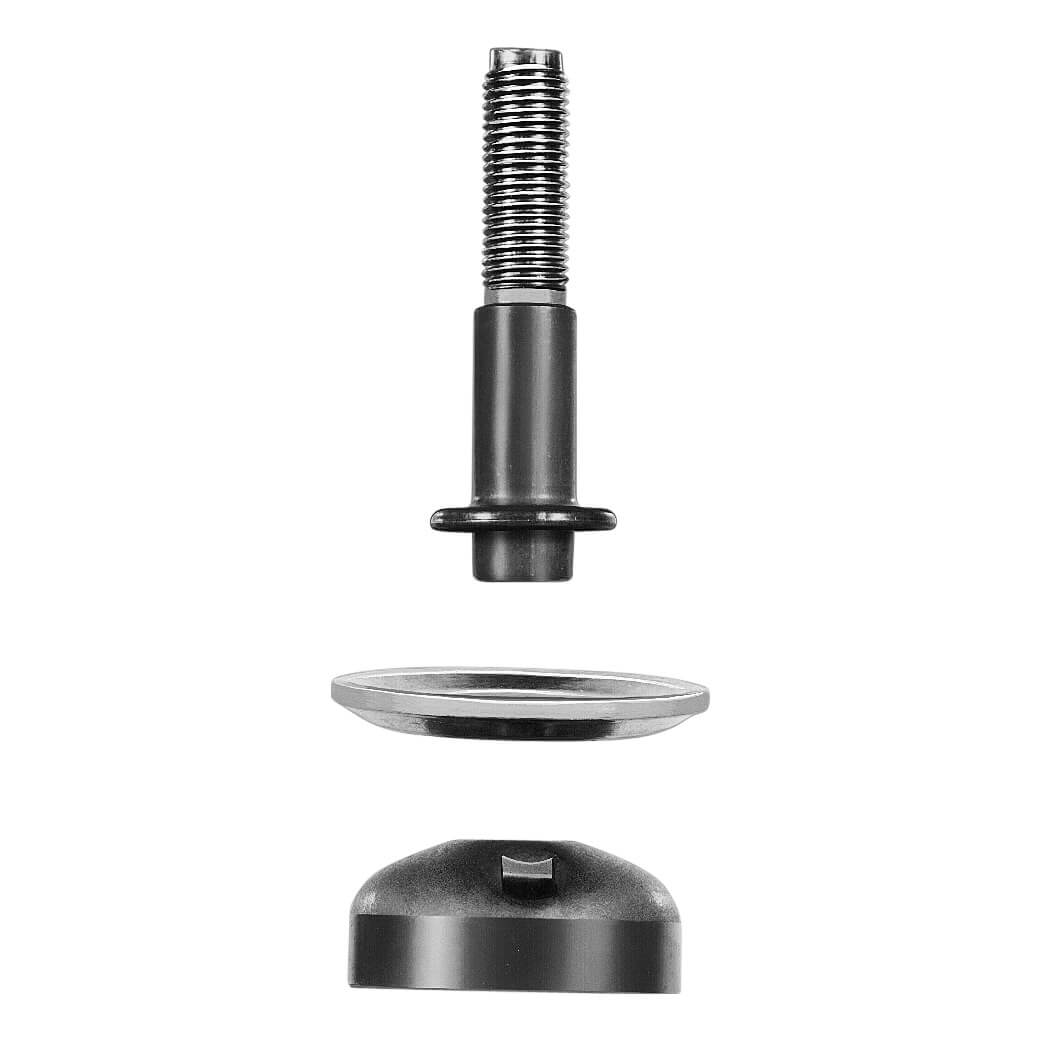

Shock absorber base cup. Weld between threaded stud and base cup firmly traps washer in place.

Application	Shock absorber base cup. Weld between threaded stud and base cup firmly traps washer in place.
Materials
Technology	Rotationsreibschweissen
Geometry	Stab mit Platte

Bumper shocks. Tubing welded to stamping for impact absorbing bumper mounts.

Application	Bumper shocks. Tubing welded to stamping for impact absorbing bumper mounts.
Materials
Technology	Rotationsreibschweissen
Geometry	Rohr mit Platte

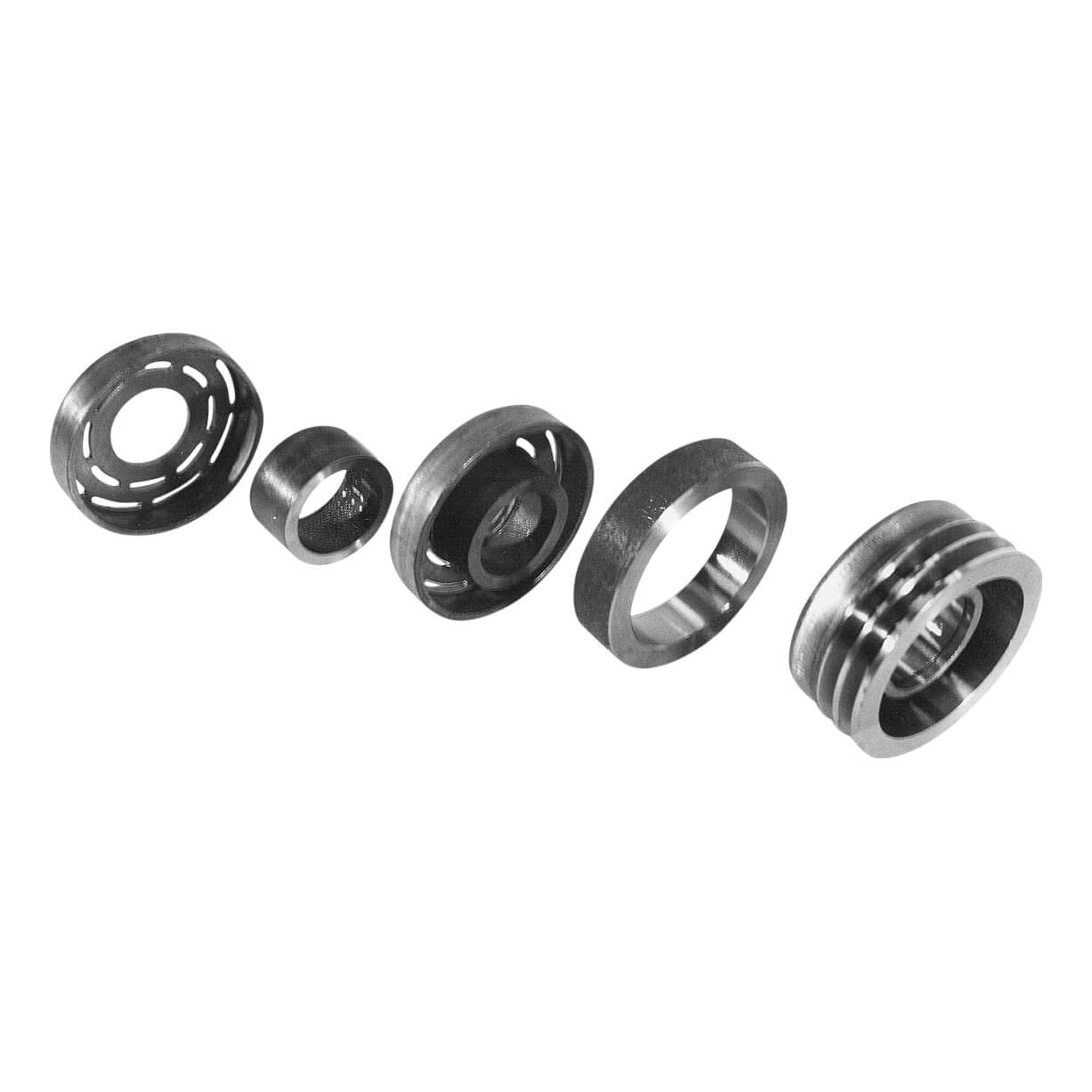

Air conditioner rotor assembly. Outer rotor pole is welded to inner rotor pole then this assembly is welded to pulley blank.

Application	Air conditioner rotor assembly. Outer rotor pole is welded to inner rotor pole then this assembly is welded to pulley blank.
Materials
Technology	Rotationsreibschweissen
Geometry	Rohr mit Scheiben

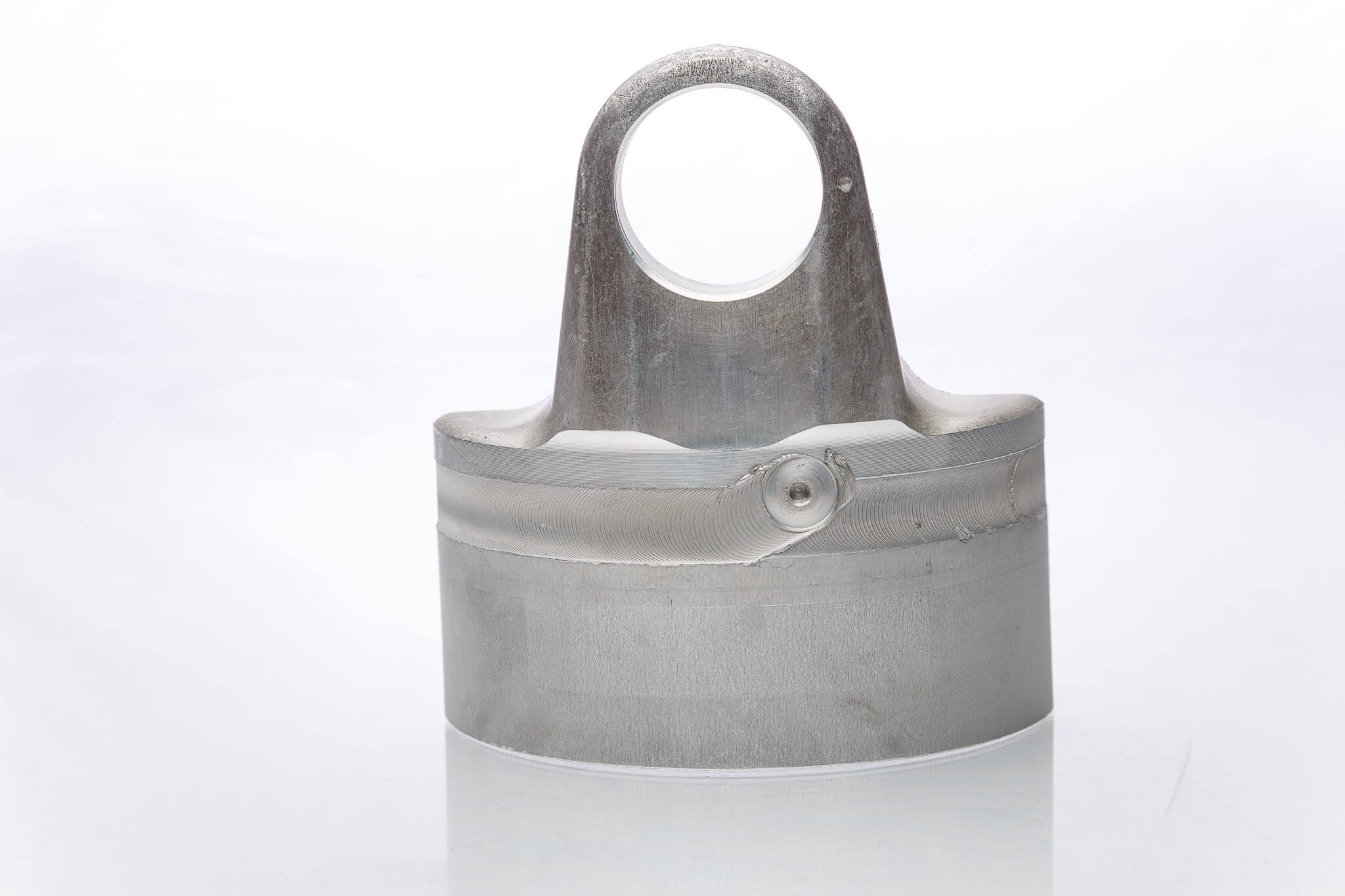

Drive shaft sectioned part front view - tool exit hole shown -lightweighting vehicle while maintaining or increasing durability

Application	Drive shaft sectioned part front view - tool exit hole shown -lightweighting vehicle while maintaining or increasing durability
Materials	Aluminum
Technology	Friction Stir Welding
Geometry	Lap

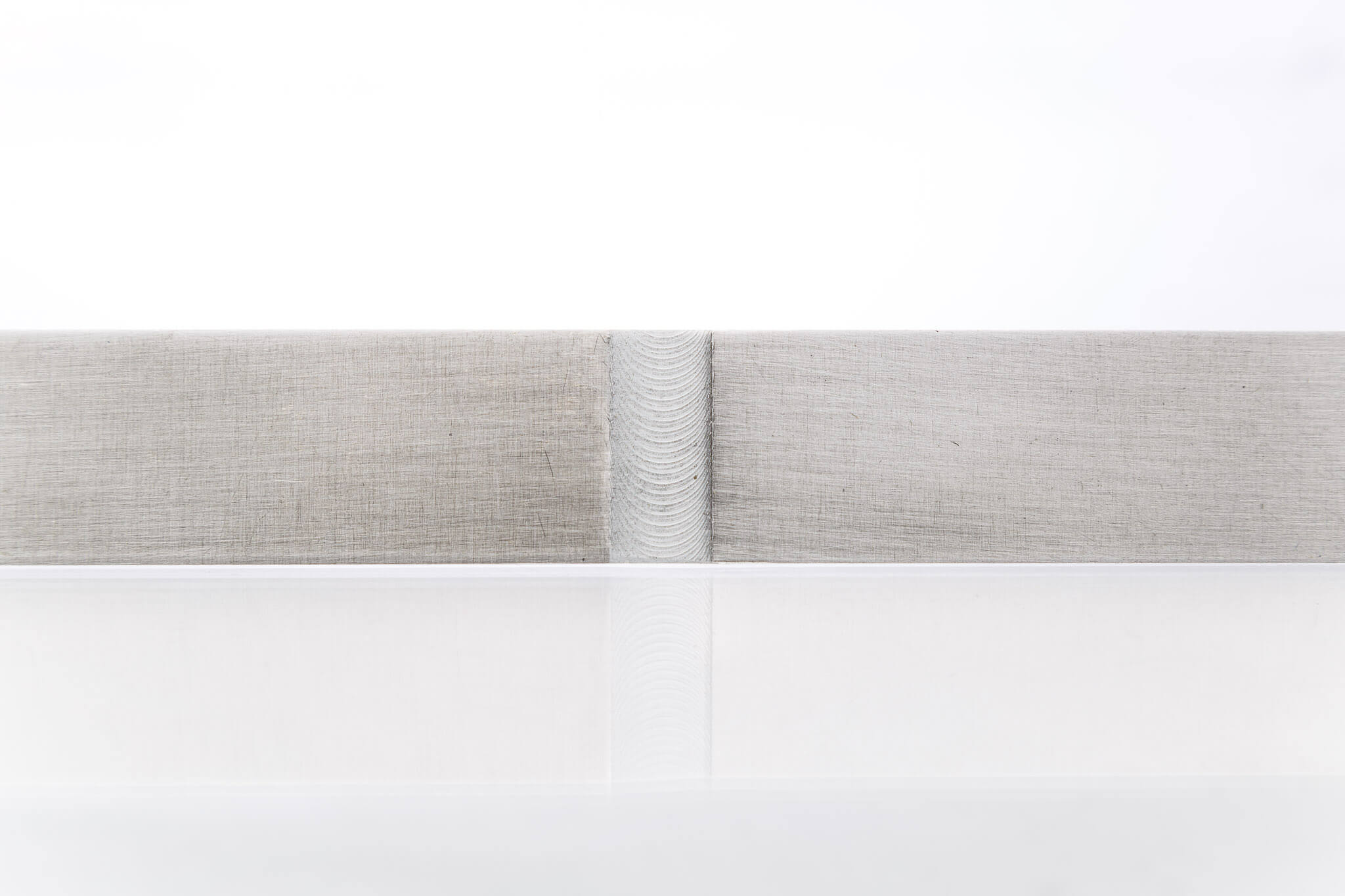

Tailor welded blanks top view -1mm and 2mm thick aluminum sheets jointed prior to stamping. Used for vehicle lightweighting. Heavier 2mm material is deployed in crtical form support areas

Application	Tailor welded blanks top view -1mm and 2mm thick aluminum sheets jointed prior to stamping. Used for vehicle lightweighting. Heavier 2mm material is deployed in crtical form support areas
Materials	Aluminum Alloys
Technology	Friction Stir Welding
Geometry	Lap

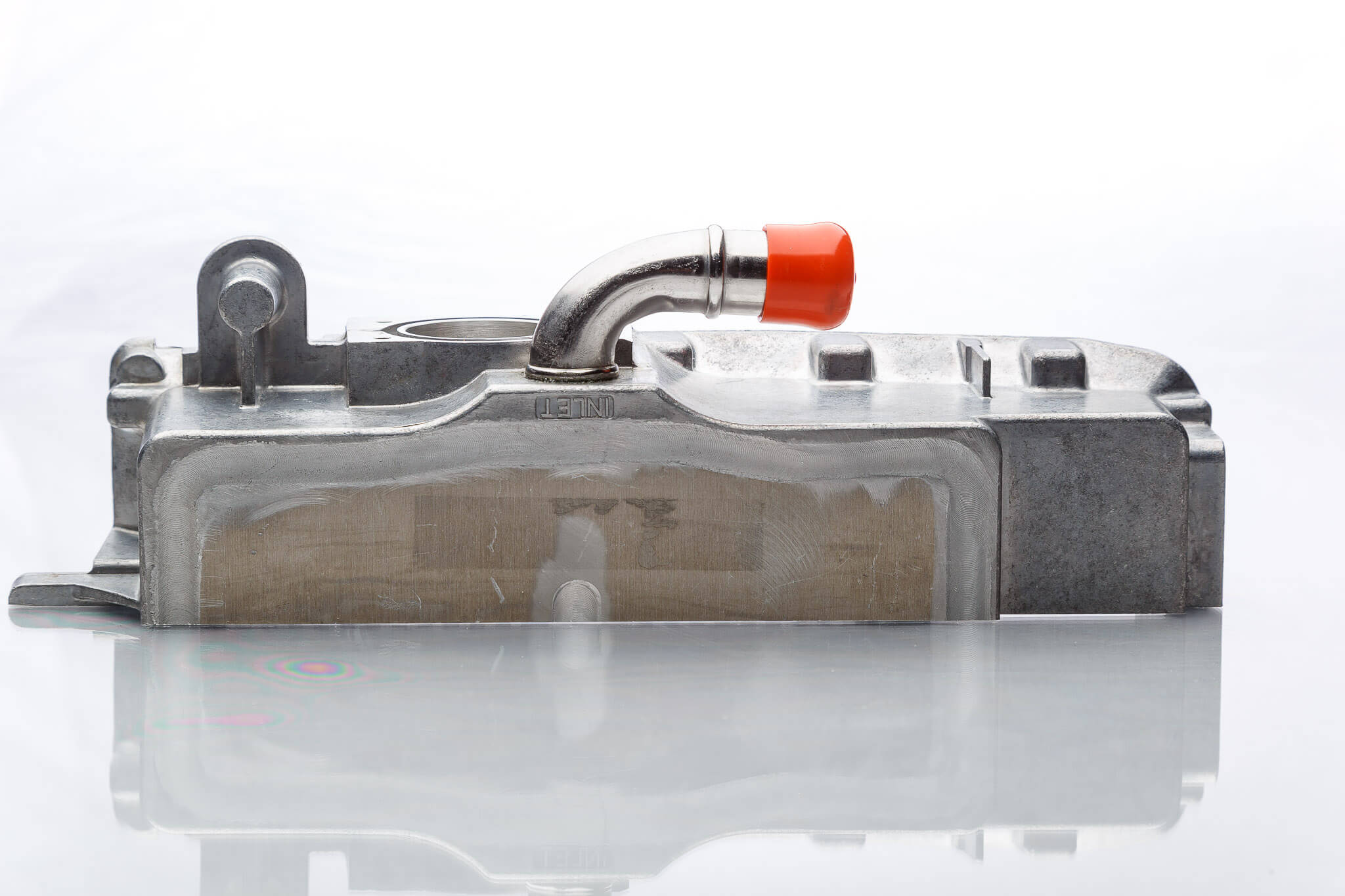

Section view of hybrid vehicle aluminum plate welded to cast aluminum heat exchanger box for a water tite seal. FSW weld path on plate is facing up.

Application	Section view of hybrid vehicle aluminum plate welded to cast aluminum heat exchanger box for a water tite seal. FSW weld path on plate is facing up.
Materials	Aluminum Alloys
Technology	Friction Stir Welding
Geometry	Lap
